立式預燒脫蠟(膠)爐

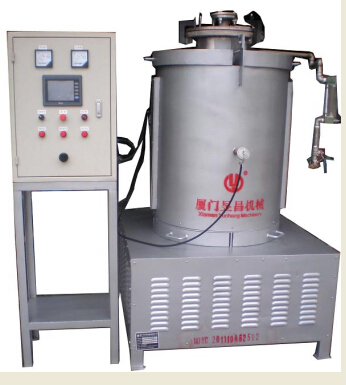

Vertical calcining dewaxing (GUM) furnace
一、主要性能說明(The main performance specification)
立式預燒脫蠟爐是硬質合金異型產品加工過程燒結前預燒脫蠟脫膠專用設備。保溫加熱系統采用日本連體技術及新型混合纖維保溫材料,可耐溫1700℃,使保溫效果更好；溫控系統采用SCR,配置20段程序溫控儀表,控溫*,可自動調節0-100%輸出,更節能省電.冷卻系統采用大功率冷卻風機,風量大且集中,冷卻速度快,效率高。
Vertical calcining dewaxing furnaceis hardalloyprocessing special-shapedproducts beforesinteringburn-in dewaxing degumming andspecial equipment.Heating system using Japanese conjoined technologyand newhybrid fiber insulation materials, hightemperature of 1700 ℃, the insulation effect is better;temperature control system using SCR, 20 sections ofprogram temperature control instrument, the temperature control is accurate, can automatically adjust the output of the 0-100%, more energy saving. The cooling system adopts the high-power cooling fan, air volume andconcentration, fast cooling speed, high efficiency.
二、主要技術參數(Main technical parameters)

產品代號Product code:YC5011
工作溫度working temperature:1000 ℃
爐膽尺寸Thefurnace dimensions:φ340*1050mm
爐膽材質Thefurnace material:310S
發熱體材質The heating body material:耐高溫抗氧化加熱絲Hightemperature oxidation heating wire
功率 power:16KW
溫控系統temperature controlling system：SCR
